Arduino - Home Sensors

Features:

  1. Temperature (temp) C°
  2. Relative Humidity (rh) %
  3. Air quality (airq), carbon monoxide and other toxix gases, airq at 50 means good air condition, airq over 400 high pollution air
  4. Relay with timer for the home heating control
  5. Button for relay open/close
  6. RGB Led - Green Led (open relay and good air), Red Led (closed relay), Blu Led with airq over 100, then brighter when airq increases more.
  7. Buzzer, gets on with air pollution when airq goes over 200, buzzer gets stronger when airq is over 400
  8. WiFi connection for remote management and supervision using TCP port 333 and command line with password
  9. Case done with FreeCAD e s3D printer

Part description and details:

https://www.seeedstudio.com/Seeeduino-Lotus-ATMega328-Board-with-Grove-Interface-p-1942.html
https://www.seeedstudio.com/Grove-Chainable-RGB-LED-p-850.html
https://www.seeedstudio.com/Grove-OLED-Display-1.12%22-p-824.html
https://www.seeedstudio.com/Grove-Buzzer-p-768.html
https://www.seeedstudio.com/Grove-Relay-p-769.html
https://www.seeedstudio.com/Grove-Temperature%26Humidity-Sensor-Pro-p-838.html
https://www.seeedstudio.com/Grove-Air-quality-sensor-v1.3-p-2439.html
https://www.seeedstudio.com/Grove-Button%28P%29-p-1243.html

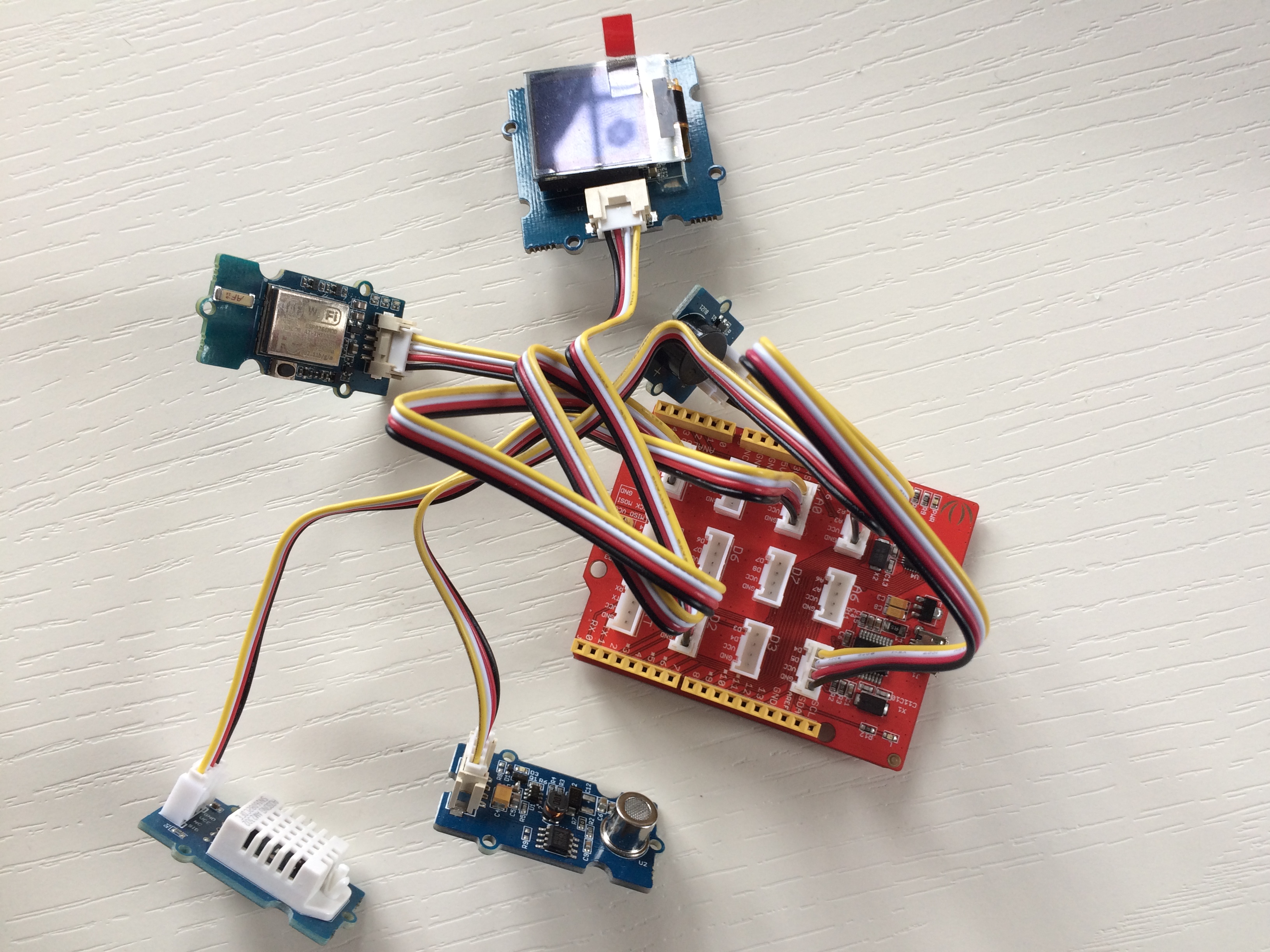

homesens_lotus

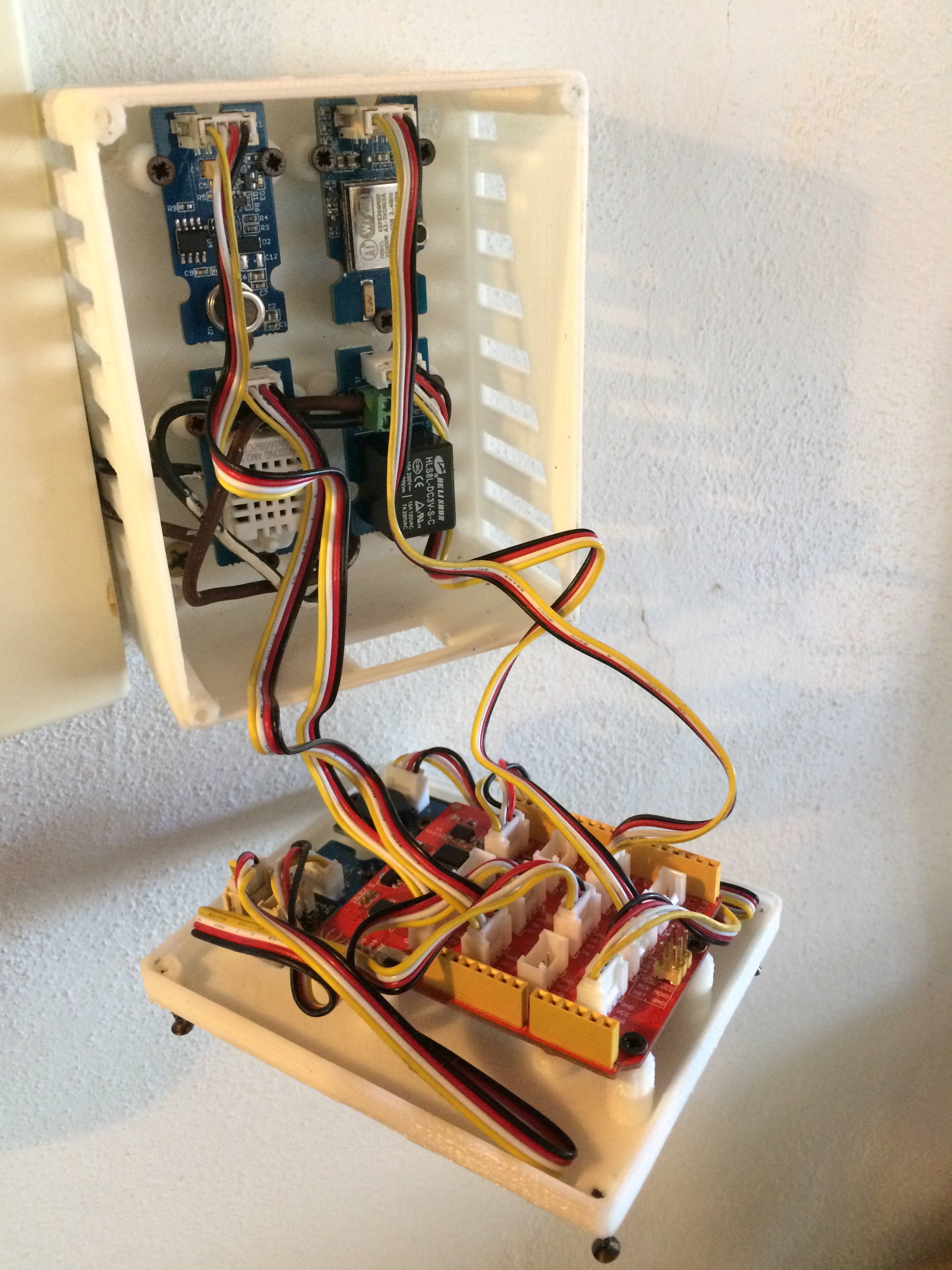

homesens_open

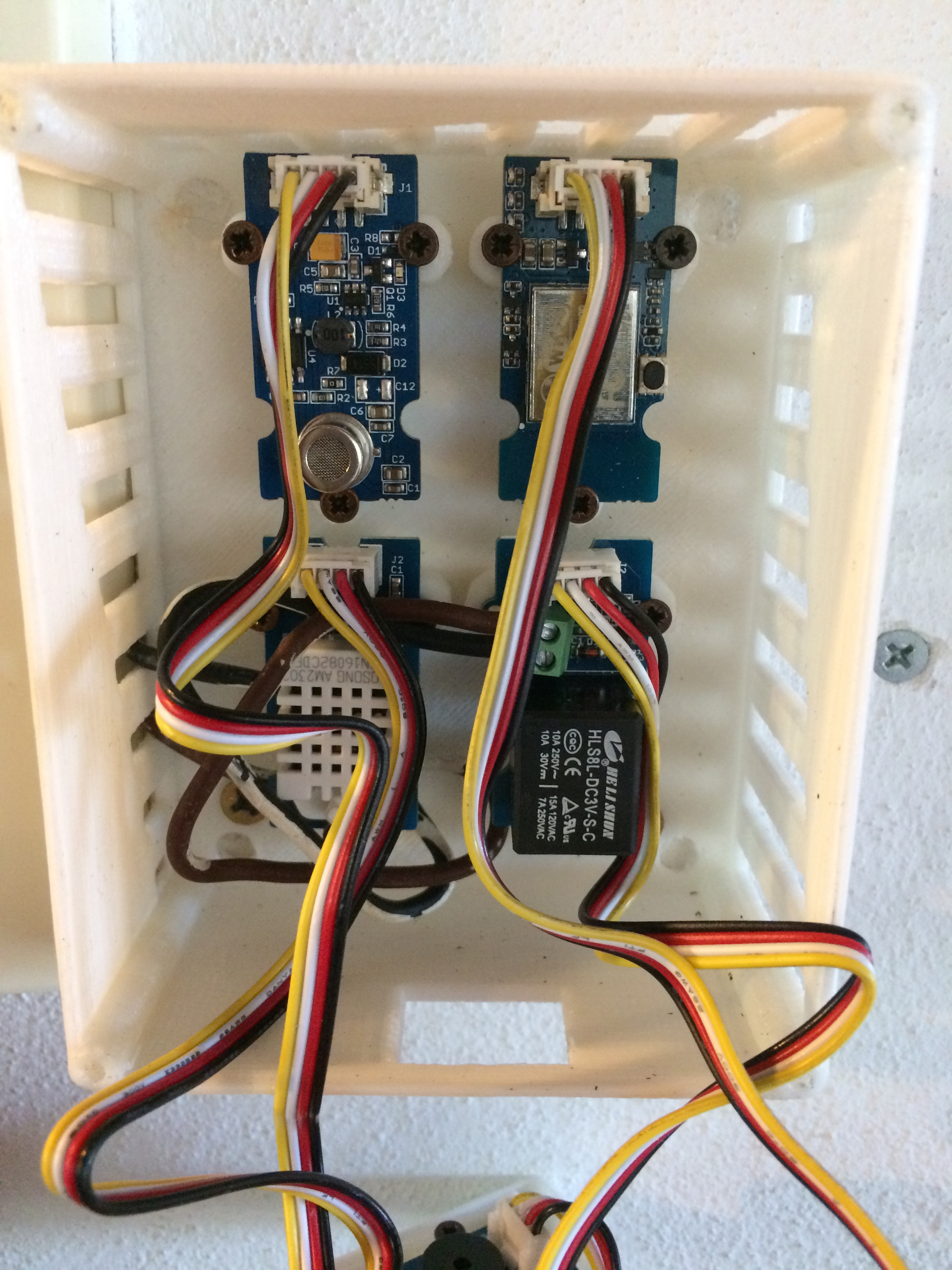

homesens_open_base

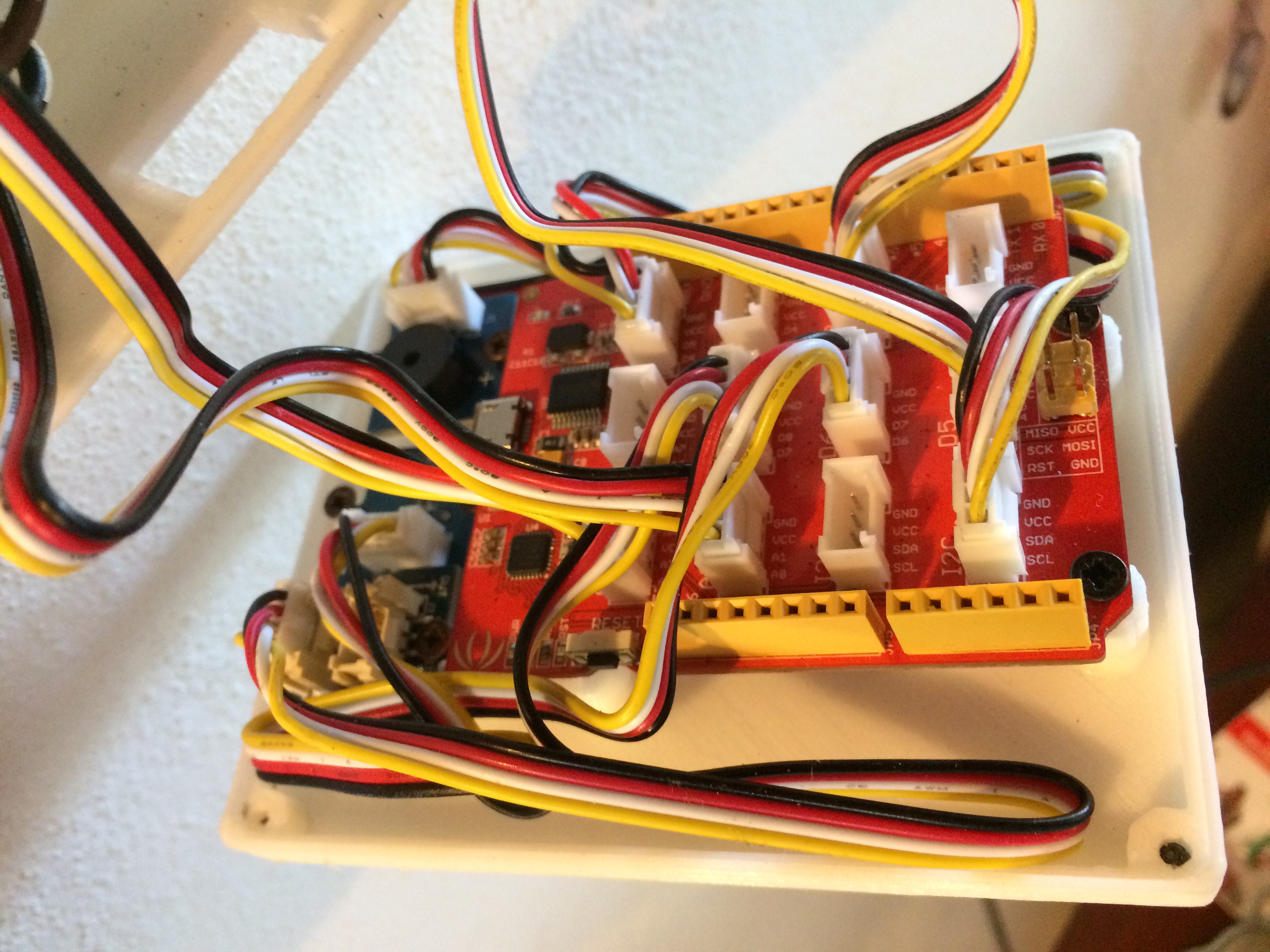

homesens_open_cover

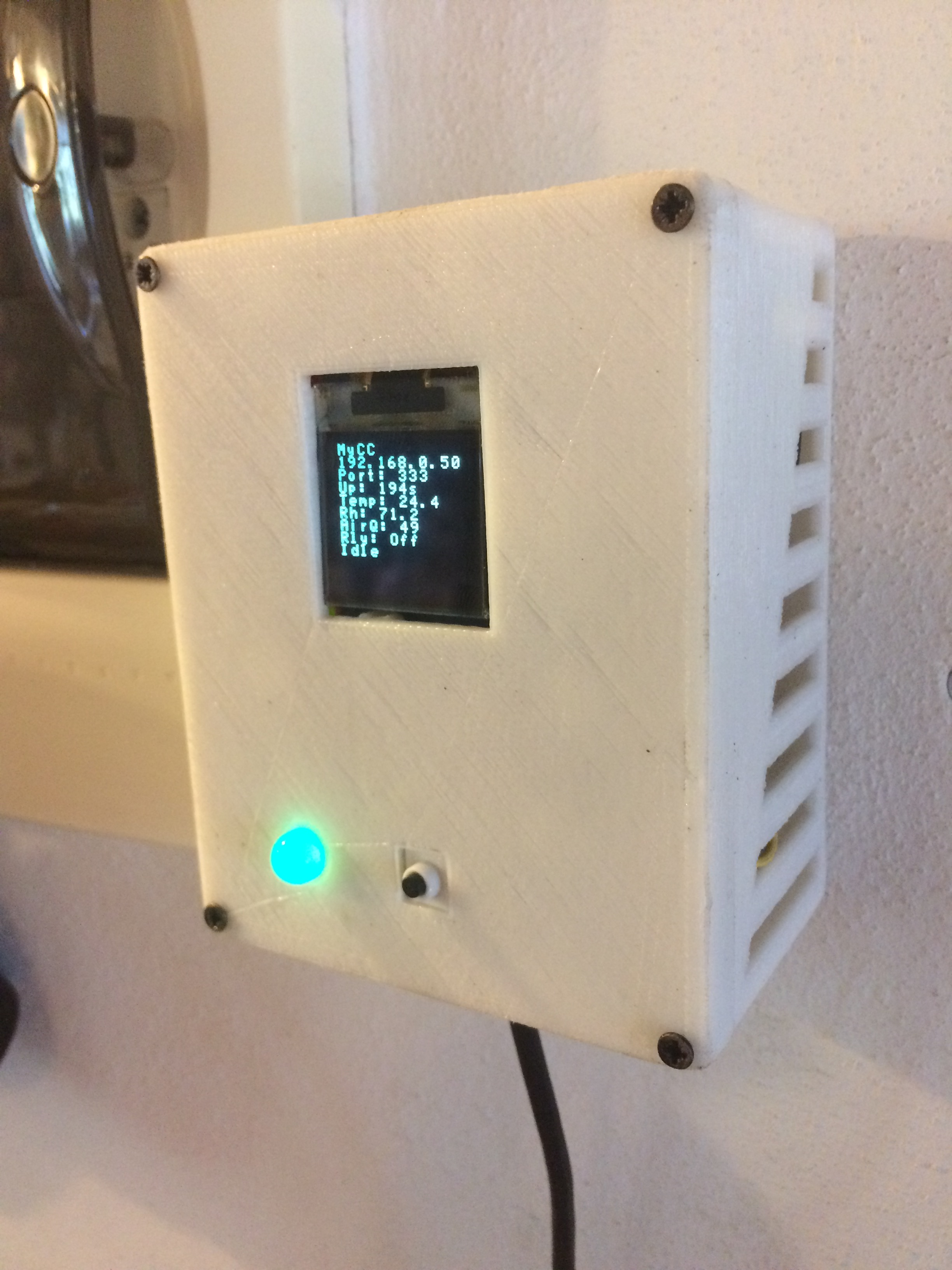

homesens1

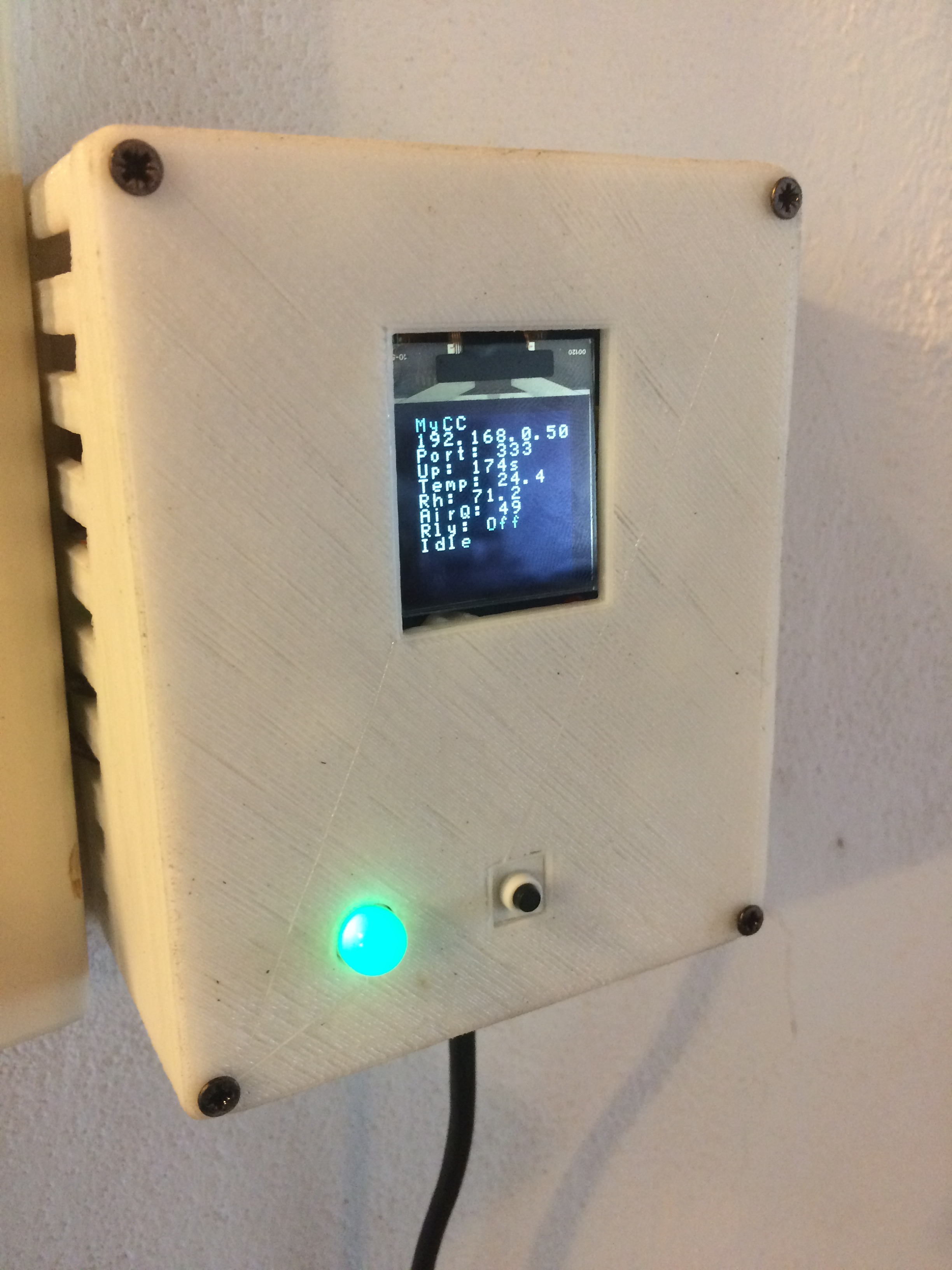

homesens2

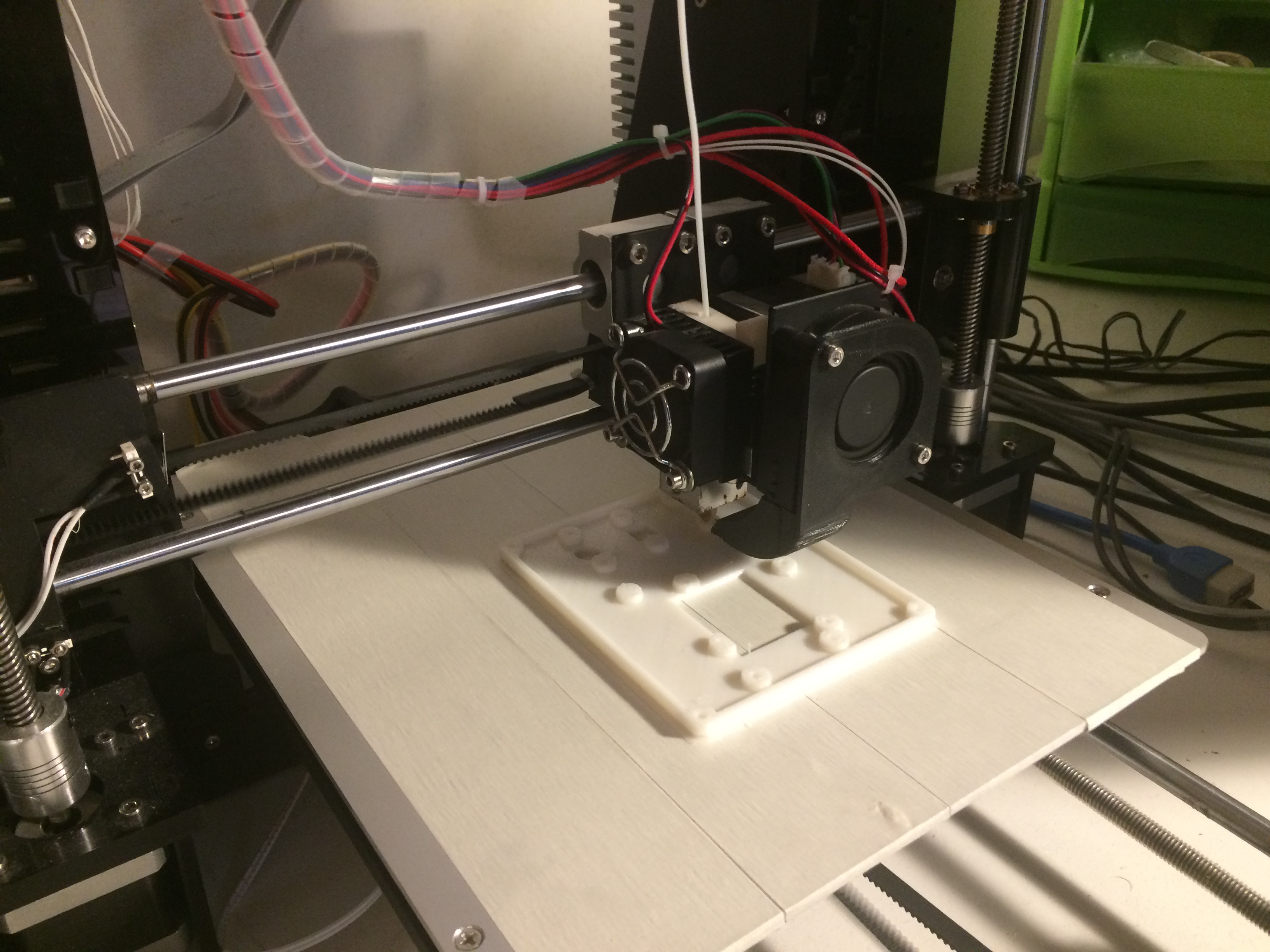

homesens3
